PRODUCTS CATALOG
PRODUCT

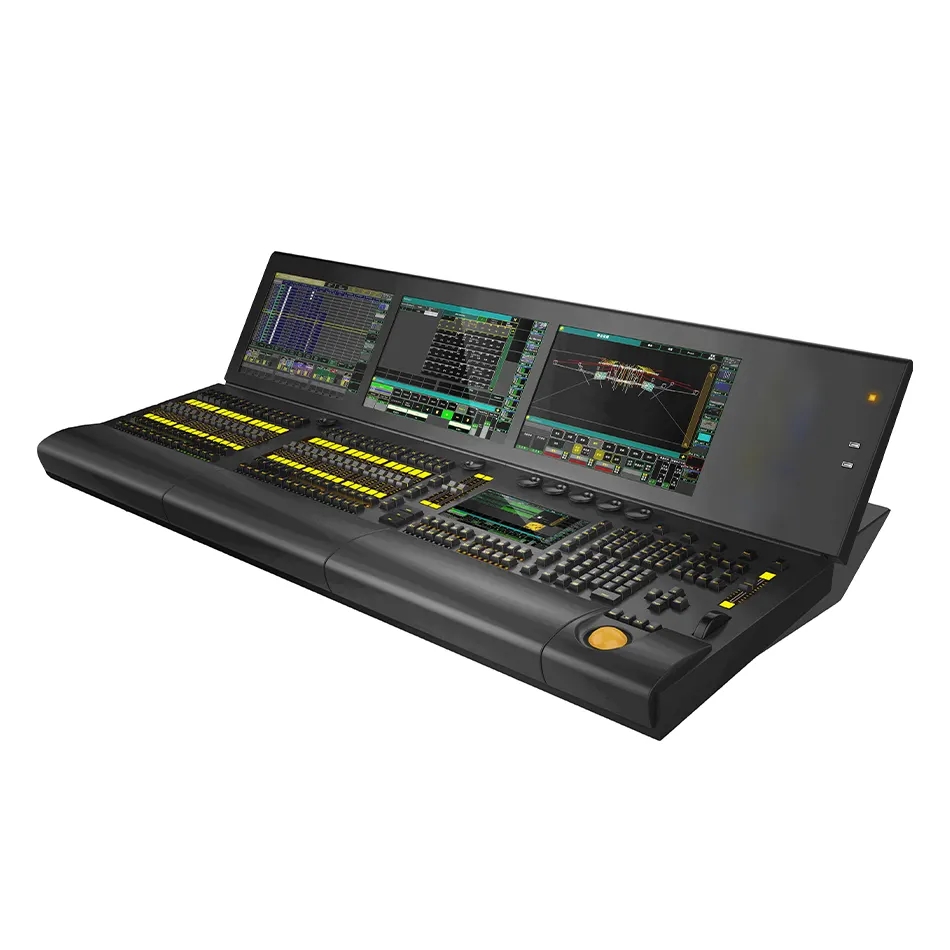

SD-99 Full Size Grand ma2 lighting controller
Console full-szie is a great and powerful lighting control table .
FULL is suitable for all lighting segments and supplies an intuitive and fast control of all connected fixtures and channels.
It can handle an infinite number of presets, cues, pages, sequences and effects.
And widely used in touring/concerts, nightclubs/bars,theatre, film/TV.
Hardware Specification:
* Real-time control for up to 65,536 parameters per session in connection with NPU (equivalent to 256 DMX universes)
* 8,192 parameters
* 6 x DMX outputs + 1 x DMX input
* NEUTRIK connector, XLR, female, 3-pin or 5-pin are optional
* 3 x internal TFT wide mode touchscreens (15.4" WXGA)
* 1 x internal command screen (9" SVGA)
* 30 x motorized executor faders
* 2 x motorized A/B fader (100mm)
* 1 x master motorized faders
* 3 x Integrated keyboard drawer
* 7 x encoders
* 1 x trackball
* 1 x dimmer wheel
* 2 x gigabit Ethernet port
* 4 x USB2.0
* MIDI in/out support
* LTC/SMPTE support
* Art-Net support
* Motorized monitor wing
* Built-in uninterruptible power supply (UPS)
* AC power: 90-260VAC, 50/60HZ
Software Specification:
* Linux operation system
* Support ArtNet
* Support DMX512
* Support sACN protocol
* The system can be installed via USB flash
* Program data can be saved on hard disk or U disk
* Support multiple online backup
* Support wireless remote control with iPhone/iPad
* Support stage 3D effect simulation, real-time scene simulation
* Support RDM management
* Support WYSIWYG connection
* Support massive light library
* Support LTP and HTP
* Support MIDI time code and internal time code
* Powerful Layout management
* Support multi-user operation, and can set the user permissions
* Each kind of material such as color, gobo, beam, position can save 1000
* Support 10000 marshals, support 10000 effects
* Support 10000 programs, each program can contain 9999 scenarion
