Main features

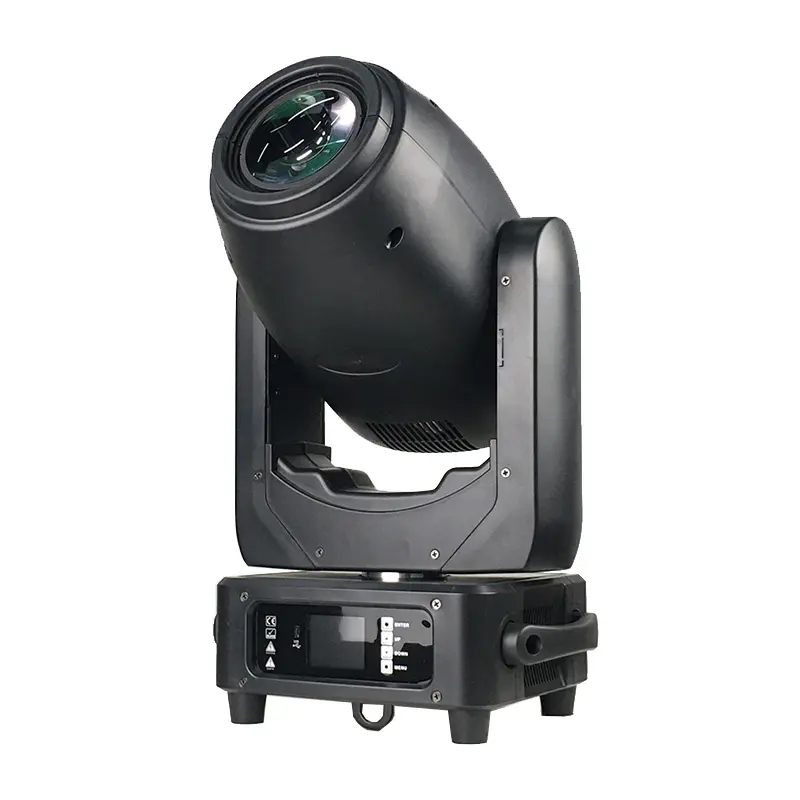

Beam Wash Spot 3IN1

Zoom range: 2-40degree

Prism: 3 facet prism

Frost effect

Color wheel: 9colors+white

Static gobo wheel: 8gobos+white

Rotate gobo wheel: 7gobos+white

High speed strobe effect with 1-25 flashers per second

Internal program available

Control

Colorful LCD display

Control mode:DMX 512, master-slave and sound activated or auto operation

Channel:16/22 DMX Channels USITT DMX-512

Thermal specification

Maximum ambient temperature: 40 °C(104℉)

Maximum surface temperature: 90 °C(194℉)

Minimum operating temperature: -20 °C(68℉)

Electrical specification and connections

Power supply: Electronic auto-ranging

Input voltage range: 100-240 V, 50/60 Hz

Power consumption: 300 W

LED Source: LED 300W White

PowerCon IN/OUT

Movement

Pan/Tilt movement: Pan 540,Tilt 270

Approvals

CE Compliant

ROSH Compliant

Mechanical specification

Weight: 13.25 kg

Ingress protection rating: IP20
