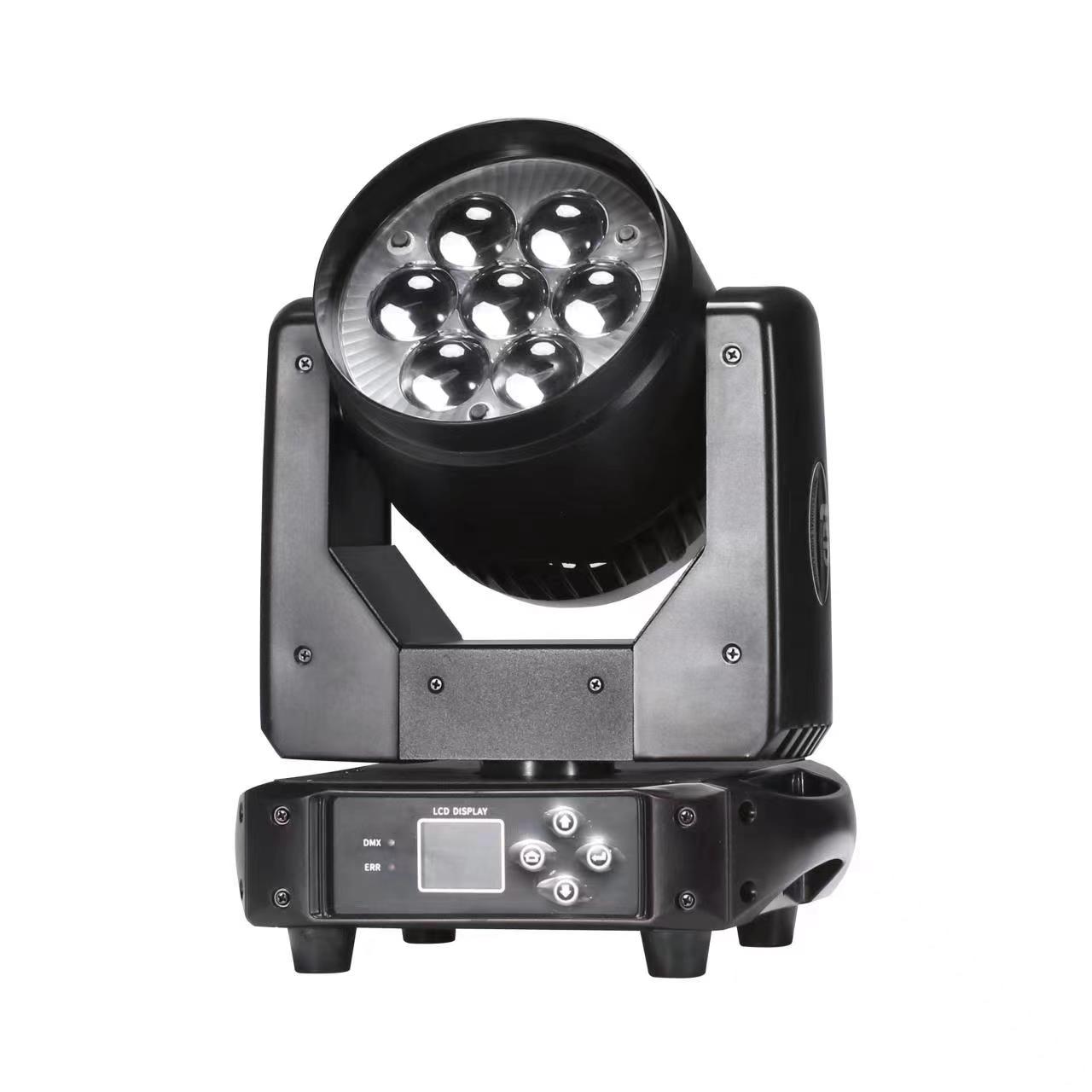

S-740B Mini 7x40W Wash


Lamp: LED

Ballast: Electronic

Optical system

Beam Angle: 4.5-45

Color temperature: 2800-8500K

Main features

Colour mixing: RGBW 4in1

Electronic strobe 1-25pcs/second,random

High resolution electronic dimming: 0 - 100%

Suitable for all types of production in DJ,Disco,Concert,Garden,Wine bar,Theatre and TV

Pan: 540

Tilt: 270


Setting & Addressing:  LCD display & 4 control buttons

Control Mode: DMX512,Master-slave,Sound,Auto


Effect: CTO,Wash, Beam,Zoom and RGBW Full Colors Control

Thermal specification

Maximum ambient temperature: 40 °C(104℉)

Maximum surface temperature: 90 °C(194℉)

Minimum operating temperature: -20 °C(68℉)

Electrical specification and connections

Input voltage range: 100-240 V, 50/60 Hz

Power consumption: 350 W

LED Source: 7*40W RGW LED,

Power connector in/out: Ture one In/Out

DMX data in/out: Locking 5-pin XLR

Mechanical specification

Weight: 7.5kg

Ingress protection rating: IP20
